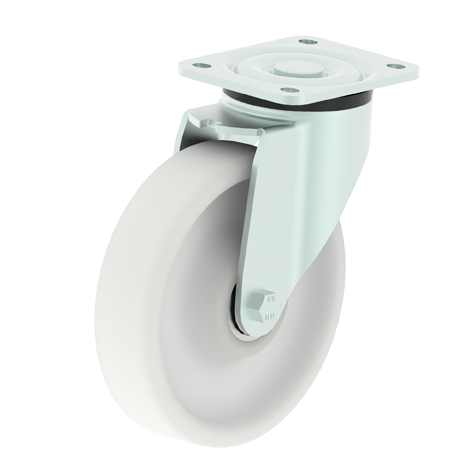

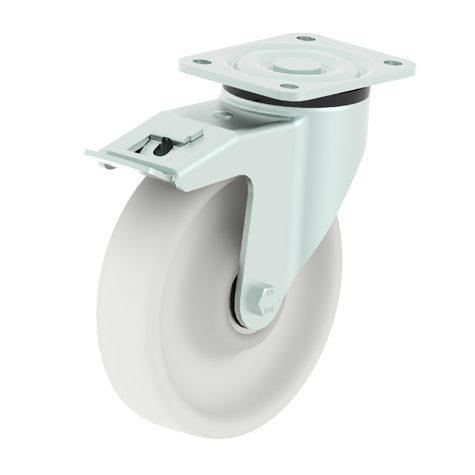

210BK
Bracket made of heavy gauge pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head protected by hardened steel with strong kingpin.
HNY Injection Polyamide 6 Wheel
Wheel made by injection of high quality nylon 6.
Thick wheel design for heavy load.
Low rolling resistance,high impact strength.
Good abrasion resistance.
Temperature range - 20°C to + 80°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 75 | 37 | 15 |  |
105x86 | 80/77x60 | 9 | 118 | 45 | 350 | 210HNY075PG | 211HNY075PG | 210HNY075PG-AQ |
| 75 | 37 | 15 |  |
105x86 | 80/77x60 | 9 | 118 | 45 | 350 | 210HNY075RG | 211HNY075RG | 210HNY075RG-AQ |
| 75 | 37 | 15 |  |
105x86 | 80/77x60 | 9 | 118 | 45 | 350 | 210HNY075DG | 211HNY075DG | 210HNY075DG-AQ |
| 80 | 37 | 15 |  |
105x86 | 80/77x60 | 9 | 121 | 45 | 350 | 210HNY081PG | 211HNY081PG | 210HNY081PG-AQ |
| 80 | 37 | 15 |  |
105x86 | 80/77x60 | 9 | 121 | 45 | 350 | 210HNY080DG | 211HNY080DG | 210HNY080DG-AQ |
| 100 | 37 | 15 |  |
105x86 | 80/77x60 | 9 | 140 | 45 | 500 | 210HNY100PG | 211HNY100PG | 210HNY100PG-AQ |
| 100 | 37 | 15 |  |
105x86 | 80/77x60 | 9 | 140 | 45 | 500 | 210HNY100DG | 211HNY100DG | 210HNY100DG-AQ |
| 125 | 40 | 15 |  |
105x86 | 80/77x60 | 9 | 165 | 45 | 700 | 210HNY125PG | 211HNY125PG | 210HNY125PG-AQ |
| 125 | 40 | 15 |  |
105x86 | 80/77x60 | 9 | 165 | 45 | 700 | 210HNY125DG | 211HNY125DG | 210HNY125DG-AQ |
| 125 | 40 | 15 |  |
135x110 | 105x80/75 | 11 | 165 | 45 | 700 | 210HNY125PG-P13* | 211HNY125PG-P13* | 210HNY125PG-AQ-P13* |
| 125 | 40 | 15 |  |
135x110 | 105x80/75 | 11 | 165 | 45 | 700 | 210HNY125DG-P13* | 211HNY125DG-P13* | 210HNY125DG-AQ-P13* |
| 125 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 170 | 65 | 750 | 210HNY126PH-P9* | 211HNY126PH-P9* | 210HNY126PH-AQ-P9* |
| 125 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 170 | 65 | 750 | 210HNY126DH-P9* | 211HNY126DH-P9* | 210HNY126DH-AQ-P9* |
| 150 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 200 | 65 | 800 | 210HNY150PH | 211HNY150PH | 210HNY150PH-AQ |
| 150 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 200 | 65 | 800 | 210HNY150DH | 211HNY150DH | 210HNY150DH-AQ |
| 150 | 50 | 25 |  |
135x110 | 105x80/75 | 11 | 200 | 65 | 800 | 210HNY150DI | 211HNY150DI | 210HNY150DI-AQ |
| 175 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 233 | 65 | 900 | 210HNY175DH | 211HNY175DH | 210HNY175DH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 245 | 65 | 1000 | 210HNY200PH | 211HNY200PH | 210HNY200PH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 245 | 65 | 1000 | 210HNY200DH | 211HNY200DH | 210HNY200DH-AQ |
| 200 | 50 | 25 |  |
135x110 | 105x80/75 | 11 | 245 | 65 | 1000 | 210HNY200DI | 211HNY200DI | 210HNY200DI-AQ |
