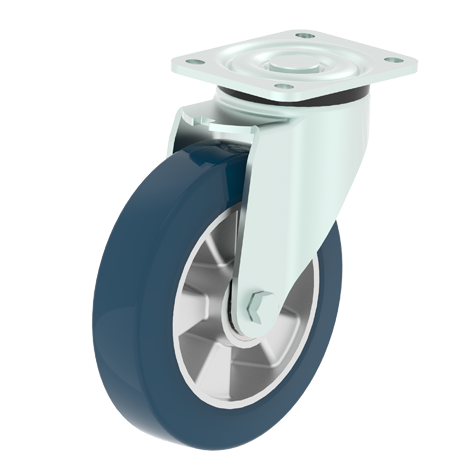

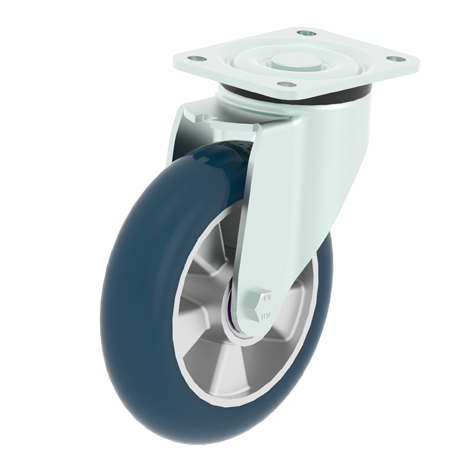

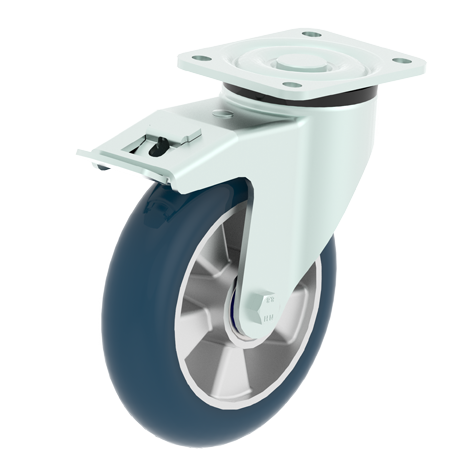

210HMUA series

230~800 kg

210BK

Bracket made of heavy gauge pressed steel,zinc plated blue passivated finished.

Double ballraces swivel head protected by hardened steel with strong kingpin.

HMUA Heavy Duty Polyurethane Wheel

High quality Polyurethane tread 75° Shore A,bonded to aluminium wheel centre.

Double precision ball bearings.

Good resistance to cut,tear and wear,low rolling resistance.

Temperature range - 20°C to + 70°C.

Contact Now

Product parameters

1
mm
 2
mm
 3
mm
 4
5
mm
 6
mm
 10
mm
 7
mm
 12
mm
 13
kg
80 40 15 105x86 80/77x60 9 121 45 230 210RHMUA080DG 211RHMUA080DG 210RHMUA080DG-AQ
80 40 15 105x86 80/77x60 9 121 45 230 210FHMUA080DG 211FHMUA080DG 210FHMUA080DG-AQ
100 40 15 105x86 80/77x60 9 140 45 300 210RHMUA100DG 211RHMUA100DG 210RHMUA100DG-AQ
100 40 15 105x86 80/77x60 9 140 45 300 210FHMUA100DG 211FHMUA100DG 210FHMUA100DG-AQ
125 42 20 105x86 80/77x60 9 165 45 350 210RHMUA125DH 211RHMUA125DH 210RHMUA125DH-AQ
125 42 20 105x86 80/77x60 9 165 45 350 210FHMUA125DH 211FHMUA125DH 210FHMUA125DH-AQ
150 50 20 135x110 105x80/75 11 200 65 500 210RHMUA150DH 211RHMUA150DH 210RHMUA150DH-AQ
150 50 20 135x110 105x80/75 11 200 65 500 210FHMUA150DH 211FHMUA150DH 210FHMUA150DH-AQ
160 50 20 135x110 105x80/75 11 205 65 550 210RHMUA160DH 211RHMUA160DH 210RHMUA160DH-AQ
160 50 20 135x110 105x80/75 11 205 65 550 210FHMUA160DH 211FHMUA160DH 210FHMUA160DH-AQ
200 50 20 135x110 105x80/75 11 245 65 700 210RHMUA200DH 211RHMUA200DH 210RHMUA200DH-AQ
200 50 20 135x110 105x80/75 11 245 65 700 210FHMUA200DH 211FHMUA200DH 210FHMUA200DH-AQ
250 50 20 135x110 105x80/75 11 295 65 800 210RHMUA250DH 211RHMUA250DH 210RHMUA250DH-I
250 50 20 135x110 105x80/75 11 295 65 800 210FHMUA250DH 211FHMUA250DH 210FHMUA250DH-I
