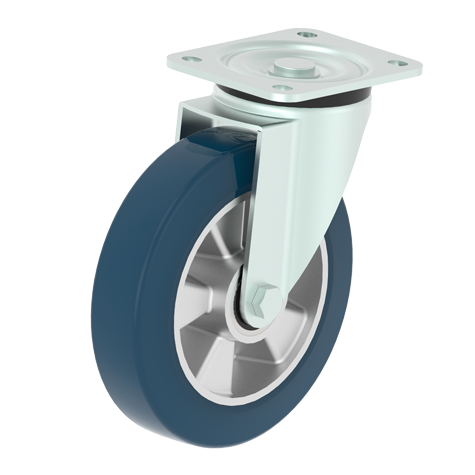

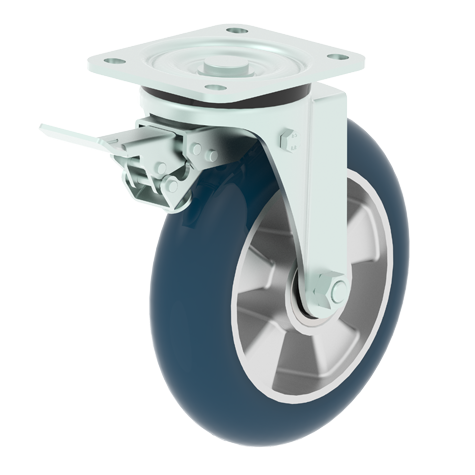

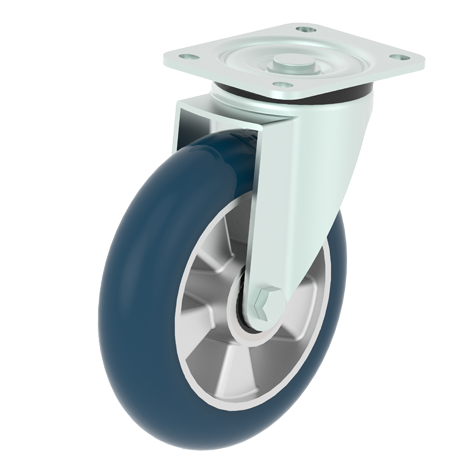

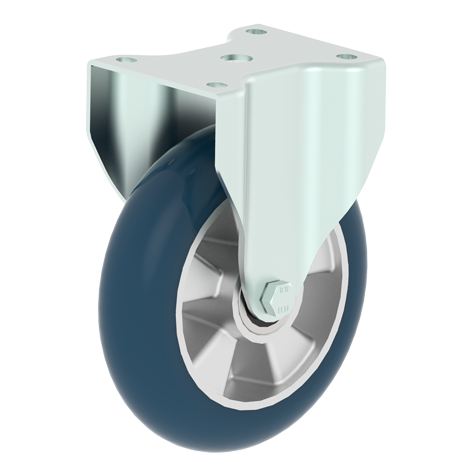

120BK
Bracket made of pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head with strong kingpin.
HMUA Heavy Duty Polyurethane WheelHigh quality Polyurethane tread 75° Shore A,bonded to aluminium wheel centre.
Double precision ball bearings.
Good resistance to cut,tear and wear,low rolling resistance.
Temperature range - 20°C to + 70°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 150 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 500 | 120RHMUA150DH | 111RHMUA150DH | 120RHMUA150DH-AQ |
| 150 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 500 | 120FHMUA150DH | 111FHMUA150DH | 120FHMUA150DH-AQ |
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 550 | 120RHMUA160DH | 111RHMUA160DH | 120RHMUA160DH-AQ |
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 550 | 120FHMUA160DH | 111FHMUA160DH | 120FHMUA160DH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 700 | 120RHMUA200DH | 111RHMUA200DH | 120RHMUA200DH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 700 | 120FHMUA200DH | 111FHMUA200DH | 120FHMUA200DH-AQ |
| 250 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 290 | 53 | 650 | 120RHMUA250DH | 111RHMUA250DH | 120RHMUA250DH-I |
| 250 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 290 | 53 | 650 | 120FHMUA250DH | 111FHMUA250DH | 120FHMUA250DH-I |
