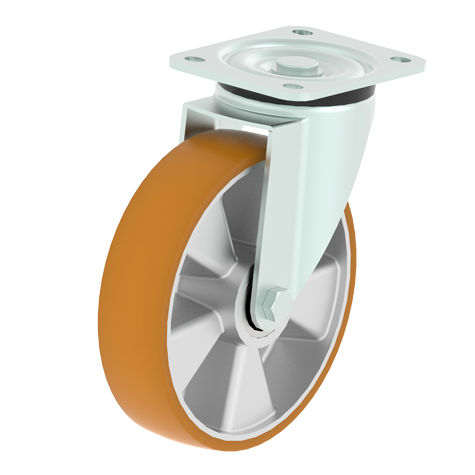

120BK
Bracket made of pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head with strong kingpin.
UA Cast Polyurethane on Aluminium Centre
Heavy duty cast Polyurethane tread chemically bonded to aluminium wheel centre.
Double precision ball bearings.
Tread hardness 93° Shore A.
Temperature range -20°C to + 70°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 150 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 650 | 120UA151DH | 111UA151DH | 120UA151DH-AQ |
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 700 | 120UA160DH | 111UA160DH | 120UA 60DH-AQ |
| 180 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 228 | 53 | 700 | 120UA180DH | 111UA180DH | 120UA180DH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 700 | 120UA200DH | 111UA200DH | 120UA200DH-AQ |
