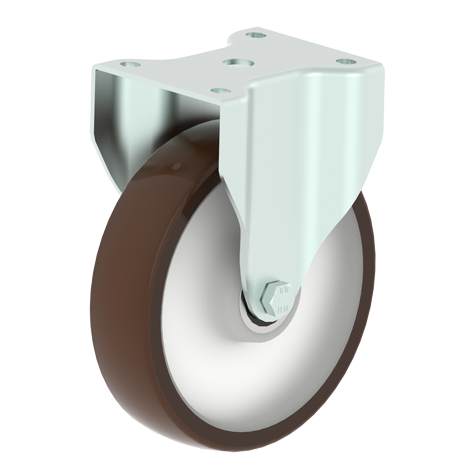

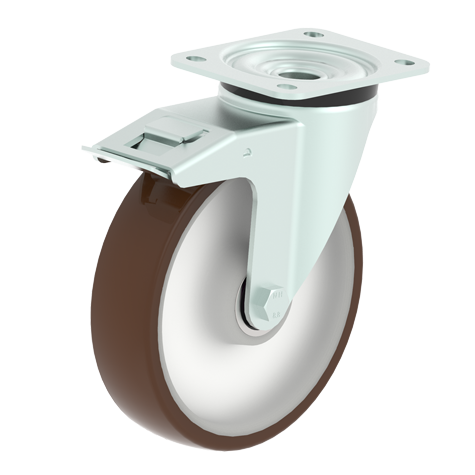

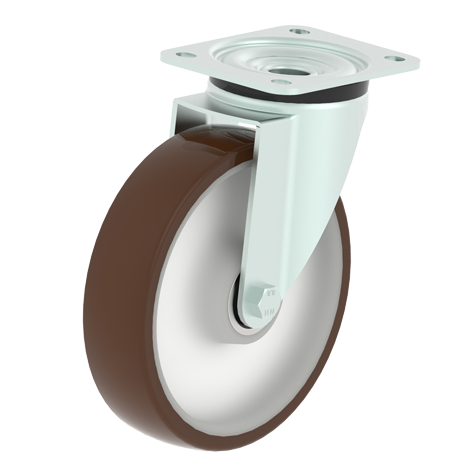

120BK
Bracket made of pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head with strong kingpin.
TU Thermoplastic Polyurethane Wheel
Thermoplastic Polyurethane tread hardness 94° Shore A,moulded on nylon centre.
Temperature range - 20°C to + 70°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 160 | 45 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 400 | 120TU160PH | 111TU160PH | 120TU160PH-AQ |
| 160 | 45 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 400 | 120TU160RH | 111TU160RH | 120TU160RH-AQ |
| 160 | 45 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 400 | 120TU160DH | 111TU160DH | 120TU160DH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 500 | 120TU200PH | 111TU200PH | 120TU200PH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 500 | 120TU200RH | 111TU200RH | 120TU200RH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 500 | 120TU200DH | 111TU200DH | 120TU200DH-AQ |
