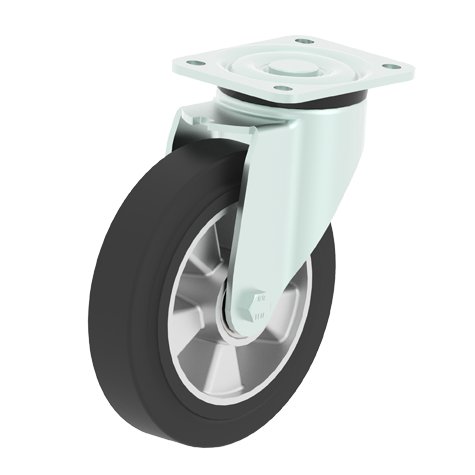

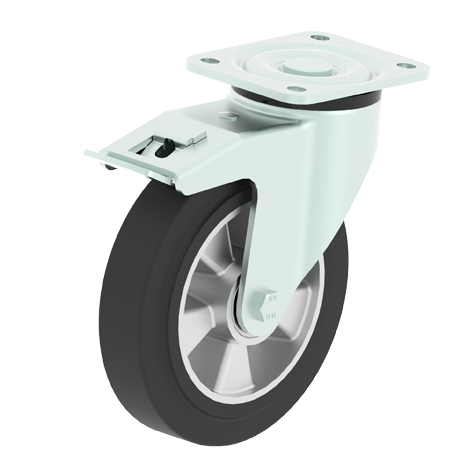

210BK
Bracket made of heavy gauge pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head protected by hardened steel with strong kingpin.
EA High Elastic Black Rubber Wheel
High quality elastic rubber 65° Shore A,
vulcanized and chemically bonded to aluminium wheel centre.
Low rolling resistance,high wear resistance,quiet & comfort operation.
PAHs Free and REACH conform.
Temperature range - 20°C to + 80°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 40 | 15 |  |
105x86 | 80/77x60 | 9 | 121 | 45 | 180 | 210EA081DG | 211EA081DG | 210EA081DG-AQ |
| 100 | 40 | 15 | |
105x86 | 80/77x60 | 9 | 140 | 45 | 200 | 210EA101DG | 211EA101DG | 210EA101DG-AQ |
| 125 | 40 | 15 | |
105x86 | 80/77x60 | 9 | 165 | 45 | 250 | 210EA126DG | 211EA126DG | 210EA126DG-AQ |
| 125 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 170 | 65 | 300 | 210EA125DH-P9* | 211EA125DH-P9* | 210EA125DH-AQ-P9* |
| 150 | 40 | 15 | |
135x110 | 105x80/75 | 11 | 200 | 65 | 300 | 210EA151DG | 211EA151DG | 210EA151DG-AQ |
| 150 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 200 | 65 | 400 | 210EA152DH | 211EA152DH | 210EA152DH-AQ |
| 160 | 40 | 15 | |
135x110 | 105x80/75 | 11 | 205 | 65 | 300 | 210EA161DG | 211EA161DG | 210EA161DG-AQ |
| 160 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 205 | 65 | 400 | 210EA160DH | 211EA160DH | 210EA160DH-AQ |
| 180 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 235 | 65 | 450 | 210EA180DH | 211EA180DH | 210EA180DH-AQ |
| 200 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 245 | 65 | 500 | 210EA200DH | 211EA200DH | 210EA200DH-AQ |
| 250 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 295 | 65 | 650 | 210EA250DH | 211EA250DH | 210EA250DH-AQ |
