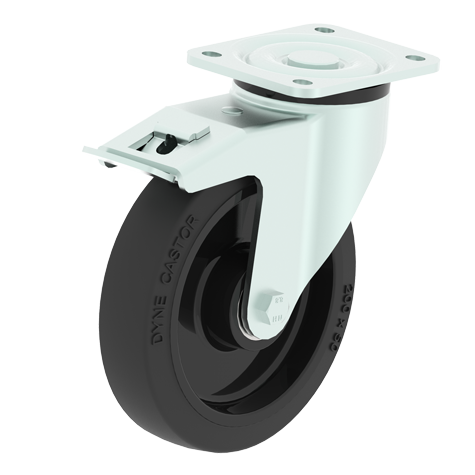

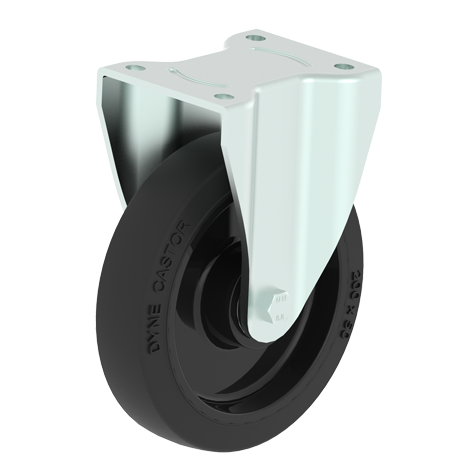

210BK
Bracket made of heavy gauge pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head protected by hardened steel with strong kingpin.
BN Elastic Black Rubber Wheel
High quality elastic rubber 65° Shore A,vulcanized and chemically bonded to nylon wheel centre.
High load capacity,low rolling resistance,high wear resistance,quiet & comfort operation.
PAHs Free and REACH conform.
Temperature range - 20°C to + 80°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 35 | 10 |  |
105x86 | 80/77x60 | 9 | 121 | 45 | 150 | 210BN081BE | 211BN081BE | 210BN081BE-AQ |
| 100 | 36 | 15 |  |
105x86 | 80/77x60 | 9 | 140 | 45 | 200 | 210BN102RG | 211BN102RG | 210BN102RG-AQ |
| 100 | 36 | 10 | |
105x86 | 80/77x60 | 9 | 140 | 45 | 200 | 210BN102BE | 211BN102BE | 210BN102BE-AQ |
| 100 | 38 | 15 |  |
105x86 | 80/77x60 | 9 | 140 | 45 | 240 | 210BN103DG | 211BN103DG | 210BN103DG-AQ |
| 125 | 36 | 15 |  |
105x86 | 80/77x60 | 9 | 165 | 45 | 250 | 210BN126RG | 211BN126RG | 210BN126RG-AQ |
| 125 | 36 | 10 | |
105x86 | 80/77x60 | 9 | 165 | 45 | 250 | 210BN126BE | 211BN126BE | 210BN126BE-AQ |
| 125 | 40 | 10 | |
105x86 | 80/77x60 | 9 | 165 | 45 | 270 | 210BN127BE | 211BN127BE | 210BN127BE-AQ |
| 125 | 40 | 15 | |
105x86 | 80/77x60 | 9 | 165 | 45 | 270 | 210BN127DG | 211BN127DG | 210BN127DG-AQ |
| 125 | 40 | 15 | |
135x110 | 105x80/75 | 11 | 170 | 65 | 270 | 210BN127DG-P13* | 211BN127DG-P13* | 210BN127DG-AQ-P13* |
| 150 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 200 | 65 | 300 | 210BN150RH | 211BN150RH | 210BN150RH-AQ |
| 150 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 200 | 65 | 300 | 210BN150DH | 211BN150DH | 210BN150DH-AQ |
| 160 | 40 | 20 | |
135x110 | 105x80/75 | 11 | 205 | 65 | 350 | 210BN161RH | 211BN161RH | 210BN161RH-AQ |
| 160 | 40 | 15 | |
135x110 | 105x80/75 | 11 | 205 | 65 | 350 | 210BN161DG | 211BN161DG | 210BN161DG-AQ |
| 160 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 205 | 65 | 400 | 210BN160RH | 211BN160RH | 210BN160RH-AQ |
| 160 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 205 | 65 | 400 | 210BN160DH | 211BN160DH | 210BN160DH-AQ |
| 200 | 40 | 20 | |
135x110 | 105x80/75 | 11 | 245 | 65 | 400 | 210BN201RH | 211BN201RH | 210BN201RH-AQ |
| 200 | 40 | 20 | |
135x110 | 105x80/75 | 11 | 245 | 65 | 400 | 210BN201DH | 211BN201DH | 210BN201DH-AQ |
| 200 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 245 | 65 | 500 | 210BN200RH | 211BN200RH | 210BN200RH-AQ |
| 200 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 245 | 65 | 500 | 210BN200DH | 211BN200DH | 210BN200DH-AQ |
| 250 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 295 | 65 | 600 | 210BN250RH | 211BN250RH | 210BN250RH-I |
| 250 | 50 | 20 | |
135x110 | 105x80/75 | 11 | 295 | 65 | 600 | 210BN250DH | 211BN250DH | 210BN250DH-I |
