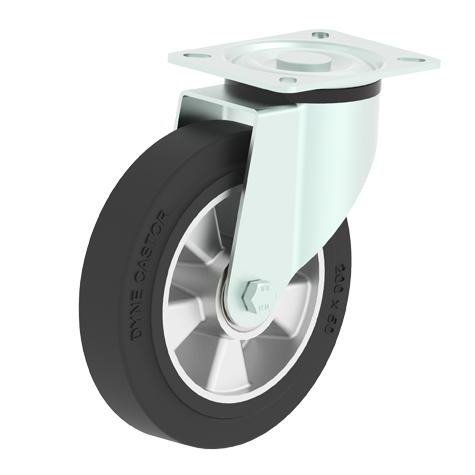

010BK
Bracket made of pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head with strong kingpin.
EA High Elastic Black Rubber Wheel
High quality elastic rubber 65° Shore A,
vulcanized and chemically bonded to aluminium wheel centre.
Low rolling resistance,high wear resistance,quiet & comfort operation.
PAHs Free and REACH conform.
Temperature range - 20°C to + 80°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 40 | 15 |  |
105x85 | 82x62/78x58 | 9 | 105 | 38 | 150 | 010EA080DG | 011EA080DG | 010EA080DG-Q |
| 100 | 40 | 15 |  |
105x85 | 82x62/78x58 | 9 | 128 | 38 | 150 | 010EA100DG | 011EA100DG | 010EA100DG-Q |
| 125 | 40 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 150 | 010EA126DG | 011EA126DG | 010EA126DG-Q |
| 150 | 40 | 15 |  |
140x110 | 110x85/100x75 | 11 | 190 | 60 | 300 | 010EA151DG | 011EA151DG | 010EA151DG-AQ |
| 150 | 50 | 20 |  |
140x110 | 110x85/100x75 | 11 | 190 | 60 | 400 | 010EA152DH | 011EA152DH | 010EA152DH-AQ |
| 160 | 40 | 15 |  |
140x110 | 110x85/100x75 | 11 | 195 | 60 | 300 | 010EA161DG | 011EA161DG | 010EA161DG-AQ |
| 160 | 50 | 20 |  |
140x110 | 110x85/100x75 | 11 | 195 | 60 | 400 | 010EA160DH | 011EA160DH | 010EA160DH-AQ |
| 180 | 50 | 20 |  |
140x110 | 110x85/100x75 | 11 | 225 | 67 | 400 | 010EA180DH | 011EA180DH | 010EA180DH-AQ |
| 200 | 50 | 20 |  |
140x110 | 110x85/100x75 | 11 | 235 | 67 | 400 | 010EA200DH | 011EA200DH | 010EA200DH-AQ |
