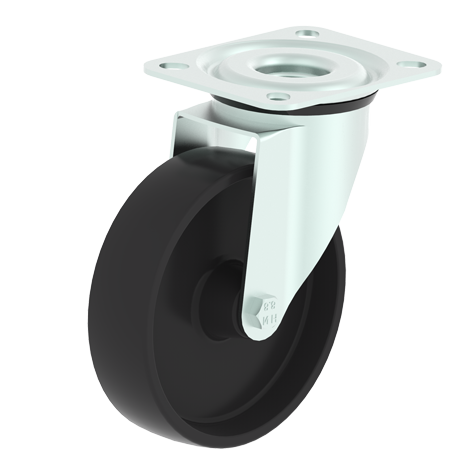

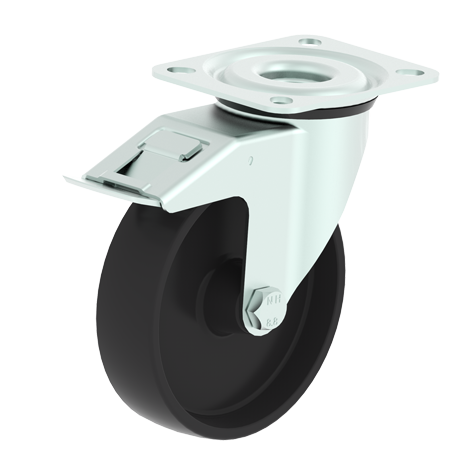

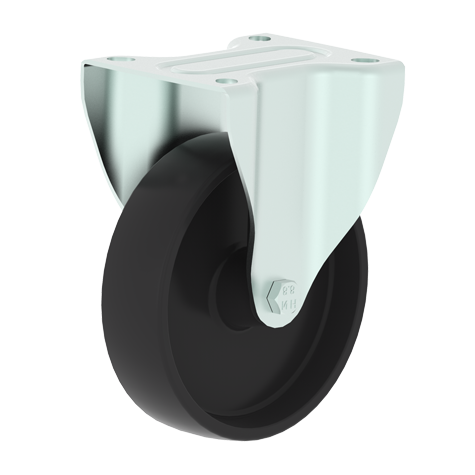

NE10BK
Bracket made of pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head strongly riveted together as one piece.
PP Polypropylene Wheel
Made by injection of co-polymer Polypropylene material.
Low rolling resistance,absorbs noise and protects floor,resists water and chemical absorption.
Temperature range -20°C to + 60°C.
Max. working speed 4km/h.
Colour : Black.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 40 | 110 | NE10PP080PF | N011PP080PF | NE10PP080PF-AQ |
| 80 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 40 | 110 | NE10PP080RF | N011PP080RF | NE10PP080RF-AQ |
| 100 | 36 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 40 | 150 | NE10PP100PF | N011PP100PF | NE10PP100PF-AQ |
| 100 | 36 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 40 | 150 | NE10PP100RF | N011PP100RF | NE10PP100RF-AQ |
| 125 | 37 | 12 |  |
105x85 | 82x62/78x58 | 9 | 156 | 40 | 150 | NE10PP125PF | N011PP125PF | NE10PP125PF-AQ |
| 125 | 37 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 40 | 150 | NE10PP125PG | N011PP125PG | NE10PP125PG-AQ |
| 125 | 37 | 12 |  |
105x85 | 82x62/78x58 | 9 | 156 | 40 | 150 | NE10PP125RF | N011PP125RF | NE10PP125RF-AQ |
| 125 | 37 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 40 | 150 | NE10PP125RG | N011PP125RG | NE10PP125RG-AQ |
