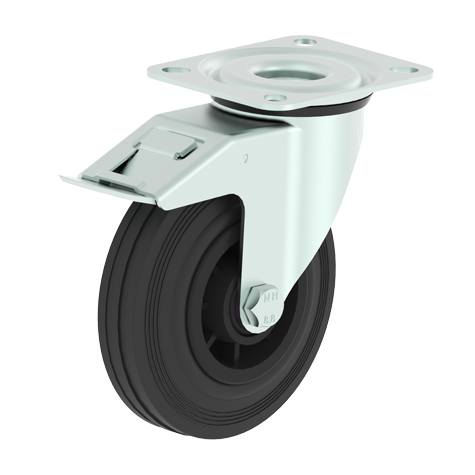

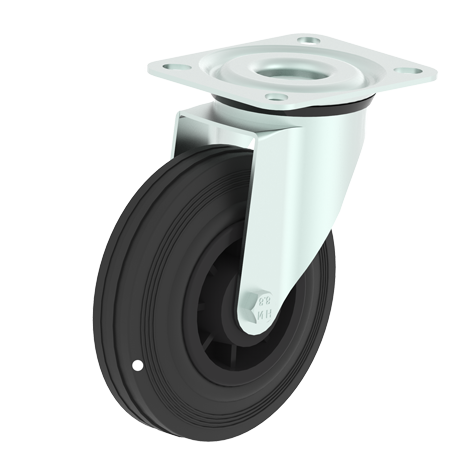

NE10BK
Bracket made of pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head strongly riveted together as one piece.

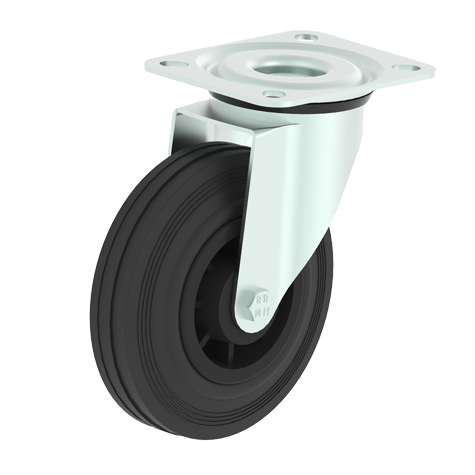

BP Black Rubber Wheel
Solid rubber tyre pressed on high impact co-polymer Polypropylene Centre.
Rubber hardness 80° Shore A.
Temperature range - 20°C to + 60°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 25 | 12 |  |
105x86 | 82x62/78x58 | 9 | 105 | 40 | 50 | NE10BP081PF | N011BP081PF | E10BP081PF-AQ |
| 80 | 25 | 12 |  |
105x86 | 82x62/78x58 | 9 | 105 | 40 | 50 | NE10BP081RF | N011BP081RF | NE10BP081RF-AQ |
| 100 | 30 | 12 |  |
105x86 | 82x62/78x58 | 9 | 128 | 40 | 70 | NE10BP101PF | N011BP101PF | NE10BP101PF-AQ |
| 100 | 30 | 12 |  |
105x86 | 82x62/78x58 | 9 | 128 | 40 | 70 | NE10BP101RF | N011BP101RF | NE10BP101RF-AQ |
| 125 | 37.5 | 12 |  |
105x86 | 82x62/78x58 | 9 | 156 | 40 | 100 | NE10BP125PF | N011BP125PF | NE10BP125PF-AQ |
| 125 | 37.5 | 12 |  |
105x86 | 82x62/78x58 | 9 | 156 | 40 | 100 | NE10BP125RF | N011BP125RF | NE10BP125RF-AQ |
