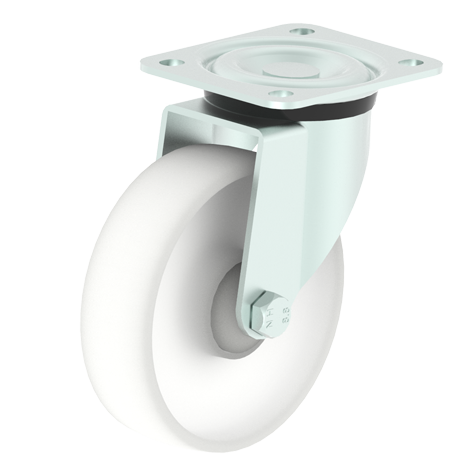

SE110BK
Bracket made of heavy gauge AISI 304 stainless steel.
Double ballraces swivel head,strong kingpin.
NY Injection Polyamide 6 Wheel
Wheel made by injection of high quality nylon 6.
High load capacity,low rolling resistance,high impact strength,good abrasion resistance.
Temperature range - 20°C to + 80°C
Max.working speed 4km/h.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 32 | 15 |  |
105x86 | 82/77x60 | 9 | 111 | 40 | 200 | SE110NY081XPG | S111NY081XPG | SE110NY081XPG-AQ |
| 80 | 32 | 15 |  |
105x86 | 82/77x60 | 9 | 111 | 40 | 200 | SE110NY081XRG | S111NY081XRG | SE110NY081XRG-AQ |
| 80 | 32 | 10 |  |
105x86 | 82/77x60 | 9 | 111 | 40 | 200 | SE110NY081XBE | S111NY081XBE | SE110NY081XBE-AQ |
| 100 | 36 | 15 |  |
105x86 | 82/77x60 | 9 | 130 | 40 | 250 | SE110NY101XPG | S111NY101XPG | SE110NY101XPG-AQ |
| 100 | 36 | 15 |  |
105x86 | 82/77x60 | 9 | 130 | 40 | 250 | SE110NY101XRG | S111NY101XRG | SE110NY101XRG-AQ |
| 100 | 36 | 10 |  |
105x86 | 82/77x60 | 9 | 130 | 40 | 250 | SE110NY101XBE | S111NY101XBE | SE110NY101XBE-AQ |
| 125 | 37 | 15 |  |
105x86 | 82/77x60 | 9 | 156 | 40 | 300 | SE110NY126XPG | S111NY126XPG | SE110NY126XPG-AQ |
| 125 | 37 | 15 |  |
105x86 | 82/77x60 | 9 | 156 | 40 | 300 | SE110NY126XRG | S111NY126XRG | SE110NY126XRG-AQ |
| 125 | 37 | 10 |  |
105x86 | 82/77x60 | 9 | 156 | 40 | 300 | SE110NY126XBE | S111NY126XBE | SE110NY126XBE-AQ |
