030BK
Bracket made of pressed steel,zinc plated blue passivated finished.

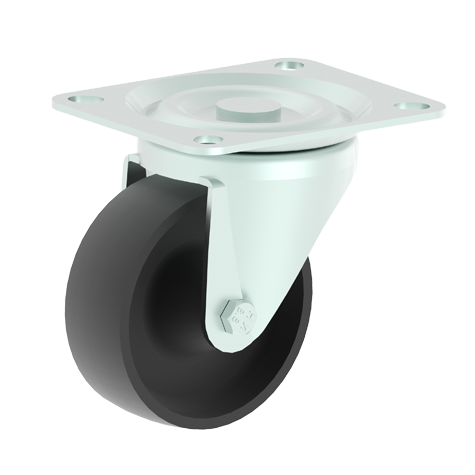

Single ballrace swivel head
CI Cast lron Wheel
Made by casting of high quality grey iron,machine finished.
Stands good load,good wear resistance,resists metal chips and high temp environment.
Grease fitting on sizes above 80mm.
Temperature range -100°C to + 300°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 50 | 20 | 6.35 |  |
67x48 | 56-54x25 | 7 | 64 | 12 | 50 | 030CI050PS | - | 030CI050PS-N |
| 50 | 20 | 6.35 |  |
69x43 | 56-54x25 | 7 | 64 | - | 50 | - | 031CI050PS | - |
| 63 | 25 | 10 |  |
96x67 | 76-73x44.5 | 8.5 | 83 | 19 | 70 | 030CI065PE | - | 030CI065PE-N |
| 63 | 25 | 10 |  |
109x54 | 90-87x27 | 8.5 | 83 | - | 70 | - | 031CI065PE | - |
| 75 | 32 | 12.7 |  |
105x80 | 86-80x60 | 9 | 95 | 21 | 100 | 030CI077PO | - | 030CI77PO-N |
| 75 | 32 | 12.7 |  |
102x64 | 83x35 | 9 | 95 | - | 100 | - | 031CI77PO | - |
| 100 | 38 | 15.88 |  |
130x103 | 102-100x76 | 11 | 127 | 27 | 200 | 030CI101PP | - | 030CI101PP-N |
| 100 | 38 | 15.88 |  |
122x77 | 100x48 | 11 | 127 | - | 200 | - | 031CI101PP | - |
| 125 | 36 | 15.88 |  |
142x100 | 104x63.5/115x80 | 10.5 | 153 | 30 | 265 | 030CI126PP | - | 030CI126PP-N |
| 125 | 36 | 15.88 |  |
150x108 | 105x63.5/116x80 | 10.5 | 153 | - | 265 | - | 031CI126PP | - |
