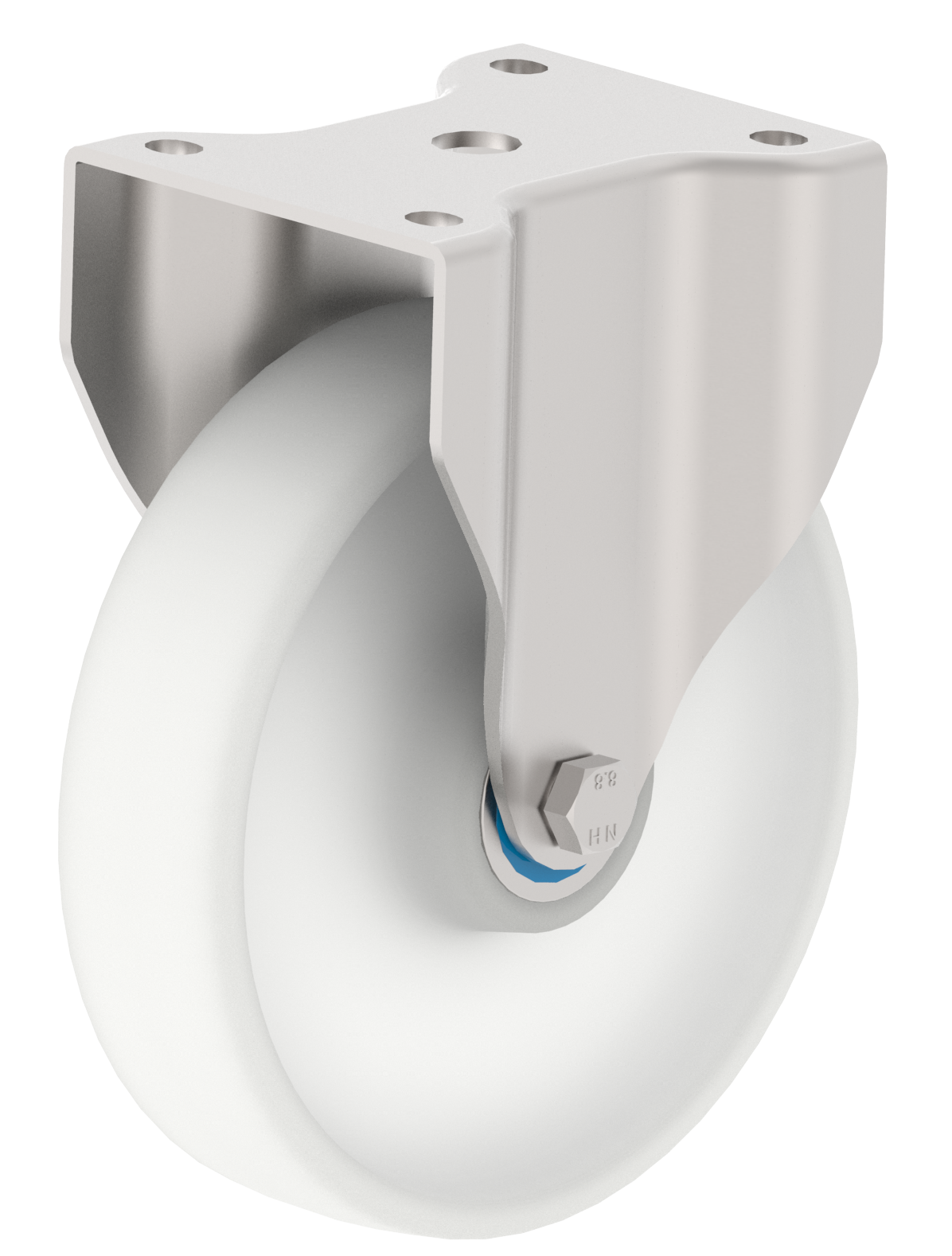

S120BK
Bracket made of heavy gauge AISI 304 stainless steel.

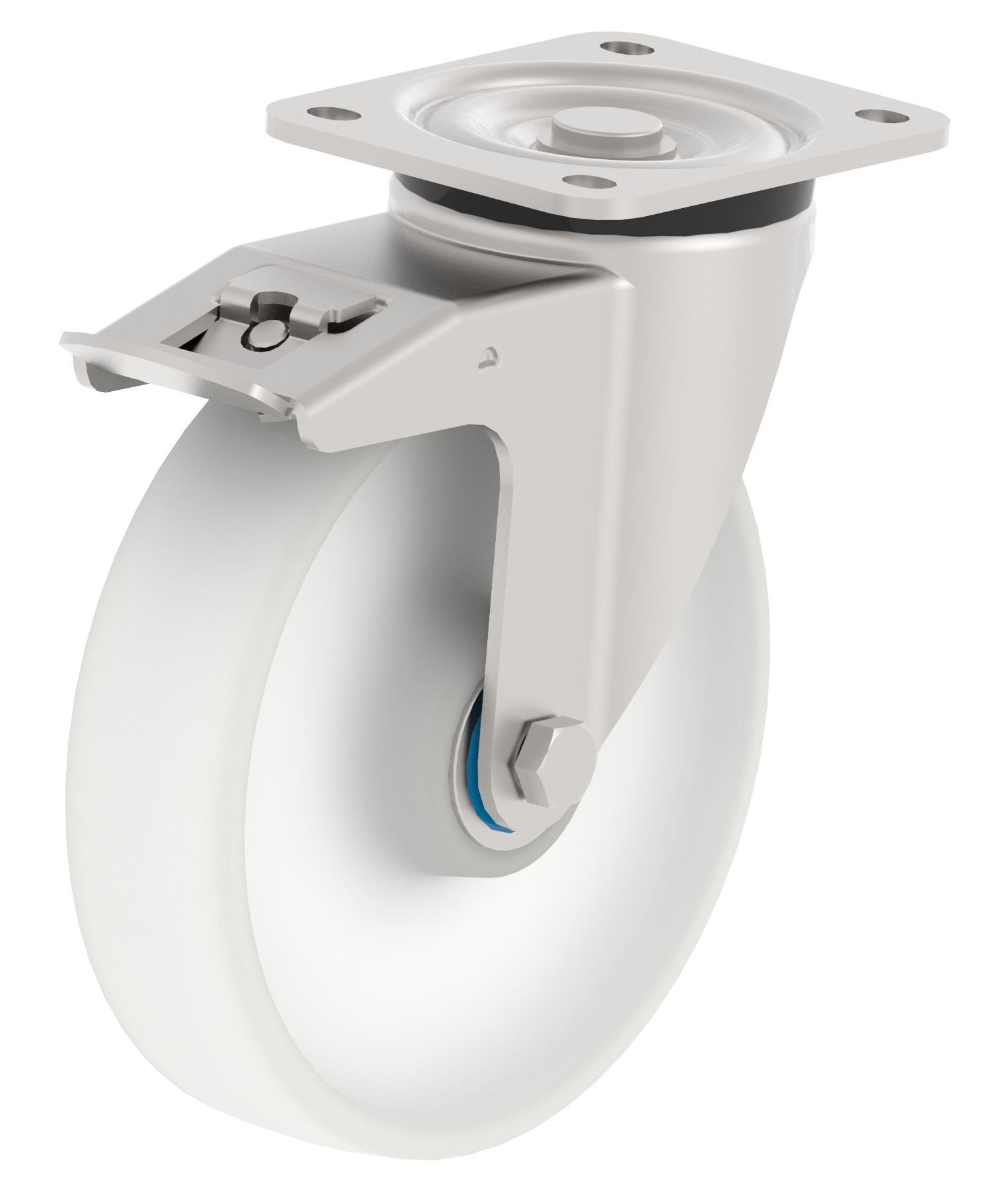

Double ballraces swivel head,strong kingpin.
NY Injection Polyamide 6 Wheel
Wheel made by injection of high quality nylon 6.
High load capacity,low rolling resistance,high impact strength,good abrasion resistance.
Temperature range - 20°C to + 80°C
Max.working speed 4km/h.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 150 | 40 | 20 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 400 | S120NY151XPH | S111NY151XPH | S120NY151XPH-AQ |
| 150 | 40 | 20 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 400 | S120NY151XRH | S111NY151XRH | S120NY151XRH-AQ |
| 150 | 40 | 15 |  |
135x110 | 105x80/75 | 11 | 190 | 53 | 400 | S120NY151XDG | S111NY151XDG | S120NY151XDG-AQ |
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 450 | S120NY160XPH | S111NY160XPH | S120NY160XPH-AQ |
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 450 | S120NY160XRH | S111NY160XRH | S120NY160XRH-AQ |
| 160 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 195 | 53 | 450 | S120NY160XDH | S111NY160XDH | S120NY160XDH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 600 | S120NY200XPH | S111NY200XPH | S120NY200XPH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 600 | S120NY200XRH | S111NY200XRH | S120NY200XRH-AQ |
| 200 | 50 | 20 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 600 | S120NY200XDH | S111NY200XDH | S120NY200XDH-AQ |
| 200 | 50 | 25 |  |
135x110 | 105x80/75 | 11 | 238 | 53 | 600 | S120NY200XDI | S111NY200XDI | S120NY200XDI-AQ |
| 250 | 50 | 25 |  |
135x110 | 105x80/75 | 11 | 290 | 53 | 700 | S120NY250XPI | S111NY250XPI | S120NY250XPI-I |
