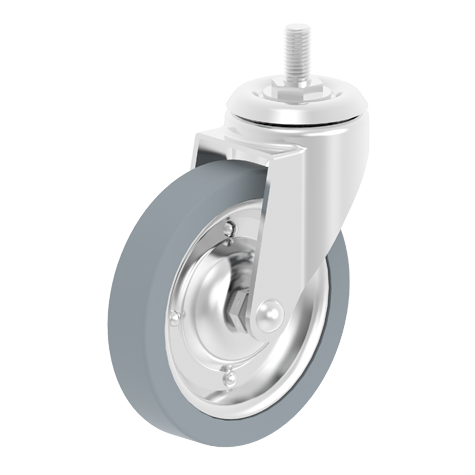

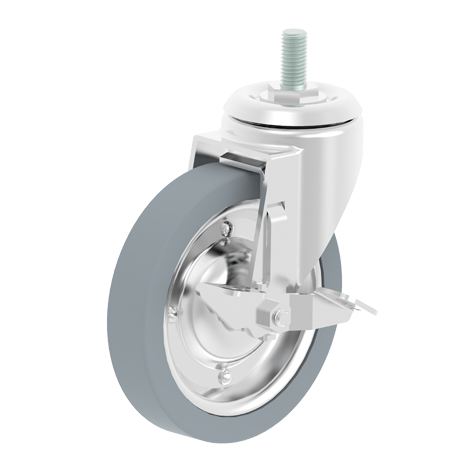

520BK
Bracket made of pressed steel,metal parts zinc plated.
Double ballraces swivel head,strong kingpin.
JN Grey rubber wheel
Non-marking grey rubber tyre fixed on pressed steel hub.
Quiet operation,low rolling resistance,good foor protection,Non-marking.
Hardness 65° Shore A.
Temperature range - 20°C to + 60°C
Metal hub chrome plated.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
| 75 | 20 | 8 |  |
1/2-2unf | 25.4 | 100 | 30 | 55 | 520JN075PD-T10 | 520JN075PD-T10-N |
| 100 | 22 | 8 |  |
1/2-2unf | 25.4 | 124 | 35 | 60 | 520JN100PD-T10 | 520JN100PD-T10-N |
| 125 | 25 | 10 |  |
1/2-2unf | 25.4 | 162 | 45 | 90 | 520JN125PE-T10 | 520JN125PE-T10-N |
