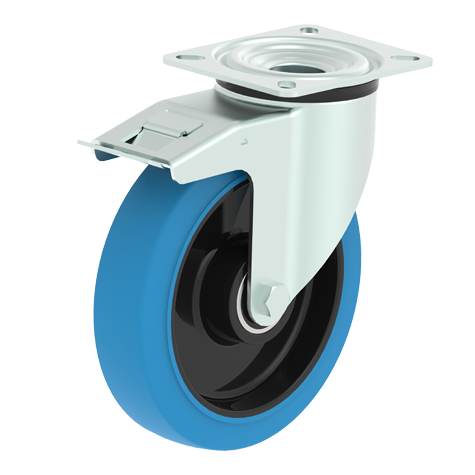

E10BK
Bracket made of pressed steel,zinc plated blue passivated finished.
Double ballraces swivel head strongly riveted together as one piece.
LN Elastic Blue Rubber Wheel
High quality elastic rubber 65° Shore A,vulcanized and chemically bonded to nylon wheel centre.
High load capacity,low rolling resistance,high wear resistance,quiet & comfort operation.
PAHs Free and REACH conform.
Temperature range - 20°C to + 80°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 35 | 12 | 105x85 | 82x62/78X58 | 9 | 105 | 34 | 150 | E10LN080PF | 011LN080PF | E10LN080PF-Q | |
| 80 | 35 | 12 | 105x85 | 82x62/78X58 | 9 | 105 | 34 | 150 | E10LN080RF | 011LN080RF | E10LN080RF-Q | |
| 80 | 35 | 8 | 105x85 | 82x62/78X58 | 9 | 105 | 34 | 150 | E10LN080BD | 011LN080BD | E10LN080BD-Q | |
| 100 | 36 | 12 | 105x85 | 82x62/78X58 | 9 | 128 | 34 | 200 | E10LN100PF | 011LN100PF | E10LN100PF-Q | |
| 100 | 36 | 12 | 105x85 | 82x62/78X58 | 9 | 128 | 34 | 200 | E10LN100RF | 011LN100RF | E10LN100RF-Q | |
| 100 | 36 | 8 | 105x85 | 82x62/78X58 | 9 | 128 | 34 | 200 | E10LN100BD | 011LN100BD | E10LN100BD-Q | |
| 125 | 36 | 15 | 105x85 | 82x62/78X58 | 9 | 156 | 32 | 200 | E10LN125PG | 011LN125PG | E10LN125PG-Q | |
| 125 | 36 | 15 | 105x85 | 82x62/78X58 | 9 | 156 | 32 | 200 | E10LN125RG | 011LN125RG | E10LN125RG-Q | |
| 125 | 36 | 10 | 105x85 | 82x62/78X58 | 9 | 156 | 32 | 200 | E10LN125BE | 011LN125BE | E10LN125BE-Q | |
| 160 | 40 | 20 | 135x110 | 110x85/100x75 | 11 | 195 | 53 | 350 | E10BN161RH | 011BN161RH | E10BN161RH-Q | |
| 160 | 40 | 15 | 135x110 | 110x85/100x75 | 11 | 195 | 53 | 350 | E10BN161DG | 011BN161DG | E10BN161DG-Q | |
| 160 | 50 | 20 | 135x110 | 110x85/100x75 | 11 | 195 | 53 | 400 | E10LN160RH | 011LN160RH | E10LN160RH-Q | |
| 160 | 50 | 20 | 135x110 | 110x85/100x75 | 11 | 195 | 400 | 53 | E10LN160DH | 011LN160DH | E10LN160DH-Q | |
| 200 | 40 | 20 | 135x110 | 110x85/100x75 | 11 | 235 | 53 | 400 | E10LN201RH | 011LN201RH | E10LN201RH-Q | |
| 200 | 40 | 15 | 135x110 | 110x85/100x75 | 11 | 235 | 53 | 400 | E10LN201DG | 011LN201DG | E10LN201DG-Q | |
| 200 | 50 | 20 | 135x110 | 110x85/100x75 | 11 | 235 | 53 | 400 | E10LN200RH | 011LN200RH | E10LN200RH-Q | |
| 200 | 50 | 20 | 135x110 | 110x85/100x75 | 11 | 235 | 53 | 400 | E10LN200DH | 011LN200DH | E10LN200DH-Q |
