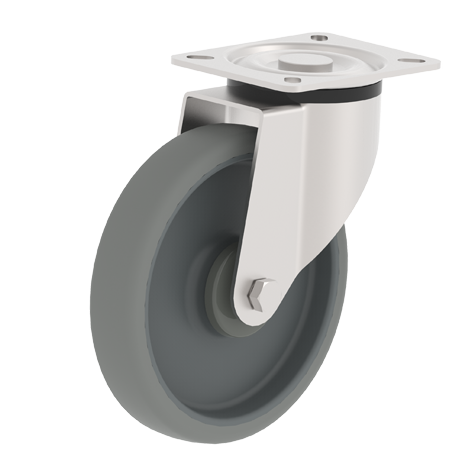

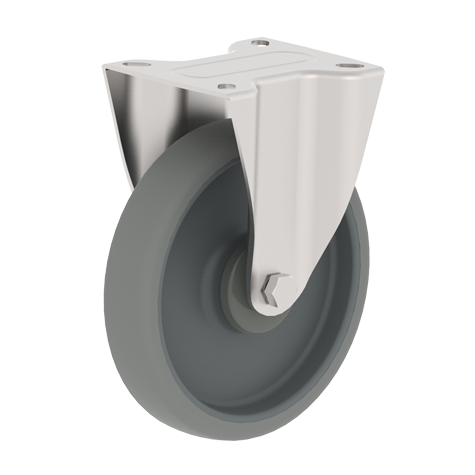

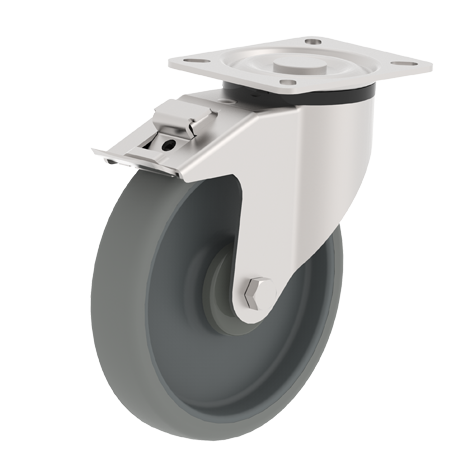

S010-B支架
支架是用 AISI 304 不绣钢压制成型及表面抛光完成。
双层滚珠轴承转动，牢固中心栓。
支架及配件全用不绣钢材质。
TE聚丙烯轮芯包热塑性橡胶轮
高质量热塑性橡胶轮面聚丙烯轮芯，橡胶表面硬度邵氏65ºA。
精密滚珠轴承配压入式密封圈。
不留痕、静音操作、低滚动阻力，防震及耐冲击，防止轮面因长期压重而变形。
拥有耐化学品、耐酸性、耐乙醇、耐力及蒸汽性能。
使用温度：-20℃~+60℃。
最高使用速度：4公里/小时。
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 80 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 38 | 100 | S010TE080XPF-B | S011TE080XPF | S010TE080XPF-B-Q |
| 80 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 105 | 38 | 100 | S010TE080XRF-B | S011TE080XRF | S010TE080XRF-B-Q |
| 80 | 32 | 8 |  |
105x85 | 82x62/78x58 | 9 | 105 | 38 | 100 | S010TE080XBD-B | S011TE080XBD | S010TE080XBD-B-Q |
| 100 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 38 | 120 | S010TE100XPF-B | S011TE100XPF | S010TE100XPF-B-Q |
| 100 | 32 | 12 |  |
105x85 | 82x62/78x58 | 9 | 128 | 38 | 120 | S010TE100XRF-B | S011TE100XRF | S010TE100XRF-B-Q |
| 100 | 32 | 8 |  |
105x85 | 82x62/78x58 | 9 | 128 | 38 | 120 | S010TE100XBD-B | S011TE100XBD | S010TE100XBD-B-Q |
| 125 | 32 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 150 | S010TE125XPG-B | S011TE125XPG | S010TE125XPG-B-Q |
| 125 | 32 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 150 | S010TE125XRG-B | S011TE125XRG | S010TE125XRG-B-Q |
| 125 | 32 | 8 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 150 | S010TE125XBD-B | S011TE125XBD | S010TE125XBD-B-Q |
| 125 | 32 | 10 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 150 | S010TE125XBE-B | S011TE125XBE | S010TE125XBE-B-Q |
| 125 | 40 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 150 | S010TE127XPG-B | S011TE127XPG | S010TE127XPG-B-Q |
| 125 | 40 | 15 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 150 | S010TE127XRG-B | S011TE127XRG | S010TE127XRG-B-Q |
| 125 | 40 | 8 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 150 | S010TE127XBD-B | S011TE127XBD | S010TE127XBD-B-Q |
| 125 | 40 | 10 |  |
105x85 | 82x62/78x58 | 9 | 156 | 41 | 150 | S010TE127XBE-B | S011TE127XBE | S010TE127XBE-B-Q |
