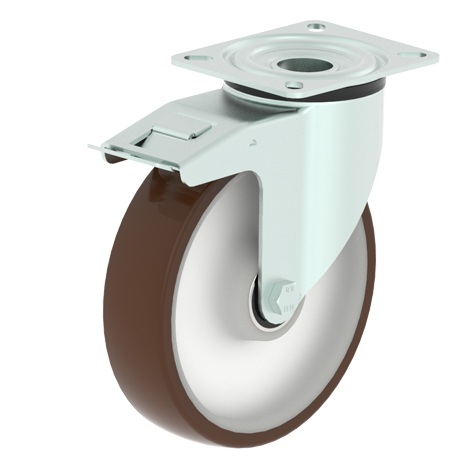

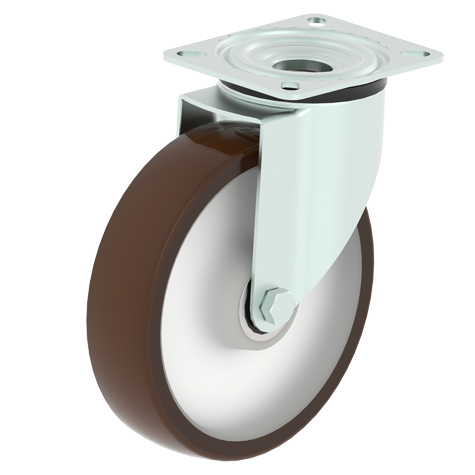

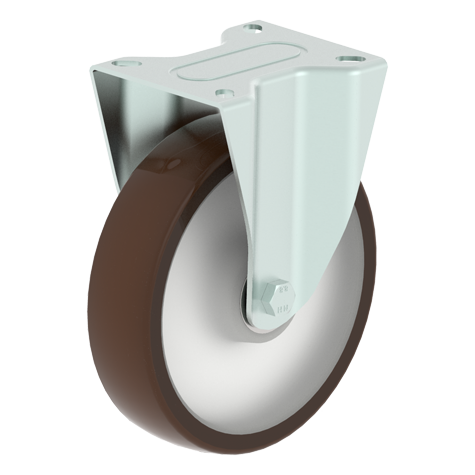

SE10TU 欧洲款经济注塑聚氨酯不绣钢脚轮

150~400 kg

SE10 支架

支架是用 AISI 304 不绣钢压制成型及表面抛光完成。

双层滚珠轴承转动机制，铆合成一体，底板孔距符合ISO标准。

支架及配件全用不绣钢材质。

TU 热注塑性注塑聚氨酯尼龙芯轮

高质量热塑性注塑聚氨酯轮尼龙轮芯，表面硬度邵氏94ºA。

精密滚珠轴承。

高负载，低滚动阻力，耐磨，静音及易于操作。

使用温度：-20℃~+70℃。

立即联系

产品参数

2
mm
 3
mm
 8
mm
 9
10
mm
 19
mm
 20
mm
 22
mm
 24
mm
 0
kg
80 32 12 105x85 82x62/75x58 9 105 34 150 SE10TU080XPF S011TU080XPF SE10TU080XPF-Q
80 32 12 105x85 82x62/75x58 9 105 34 150 SE10TU080XRF S011TU080XRF SE10TU080XRF-Q
80 32 8 105x85 82x62/75x58 9 105 34 150 SE10TU080XBD S011TU080XBD SE10TU080XBD-Q
100 36 12 105x85 82x62/75x58 9 128 34 200 SE10TU100XPF S011TU100XPF SE10TU100XPF-Q
100 36 12 105x85 82x62/75x58 9 128 34 200 SE10TU100XRF S011TU100XRF SE10TU100XRF-Q
100 36 8 105x85 82x62/75x58 9 128 34 200 SE10TU100XBD S011TU100XBD SE10TU100XBD-Q
125 37 15 105x85 82x62/75x58 9 156 32 200 SE10TU125XPG S011TU125XPG SE10TU125XPG-Q
125 37 15 105x85 82x62/75x58 9 156 32 200 SE10TU125XRG S011TU125XRG SE10TU125XRG-Q
125 37 10 105x85 82x62/75x58 9 156 32 200 SE10TU125XBE S011TU125XBE SE10TU125XBE-Q
160 45 20 135x110 110x85/100x75 11 195 53 400 SE10TU160XPH S011TU160XPH SE10TU160XPH-Q
160 45 20 135x110 110x85/100x75 11 195 53 400 SE10TU160XRH S011TU160XRH SE10TU160XRH-Q
160 45 20 135x110 110x85/100x75 11 195 53 400 SE10TU160XDH S011TU160XDH SE10TU160XDH-Q
200 50 20 135x110 110x85/100x75 11 235 53 400 SE10TU200XPH S011TU200XPH SE10TU200XPH-Q
200 50 20 135x110 110x85/100x75 11 235 53 400 SE10TU200XRH S011TU200XRH SE10TU200XRH-Q
200 50 20 135x110 110x85/100x75 11 235 53 400 SE10TU200XDH S011TU200XDH SE10TU200XDH-Q
请往左滑显示更多
